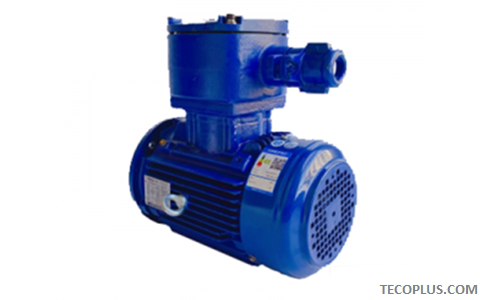

Exd IIBT4 Flameproof Motors TECHNICAL DATA:
●Class: Flameproof Three phase induction motors
●Design standard: GB3836.1,GB3836.2,JB/T7565.1
●Rated voltage: 380V or other voltage
●Rated frequency: 50Hz or 60Hz
●Outpupt range: 0.18KW～315KW
●Time duty: Continuous SF 1.0 or (SF1.0～1.3）
●Frame Nos: 80M～355L
●Protection enclosure: Exd IIBT4 Gb: IP54、IP55
●Cooling method: Self external fan, Surface cooling (IC411)
●Stator insulation: Class F insulation system
